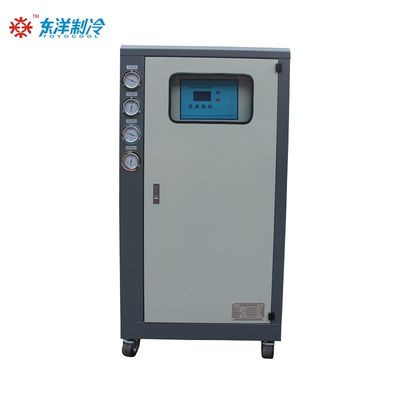

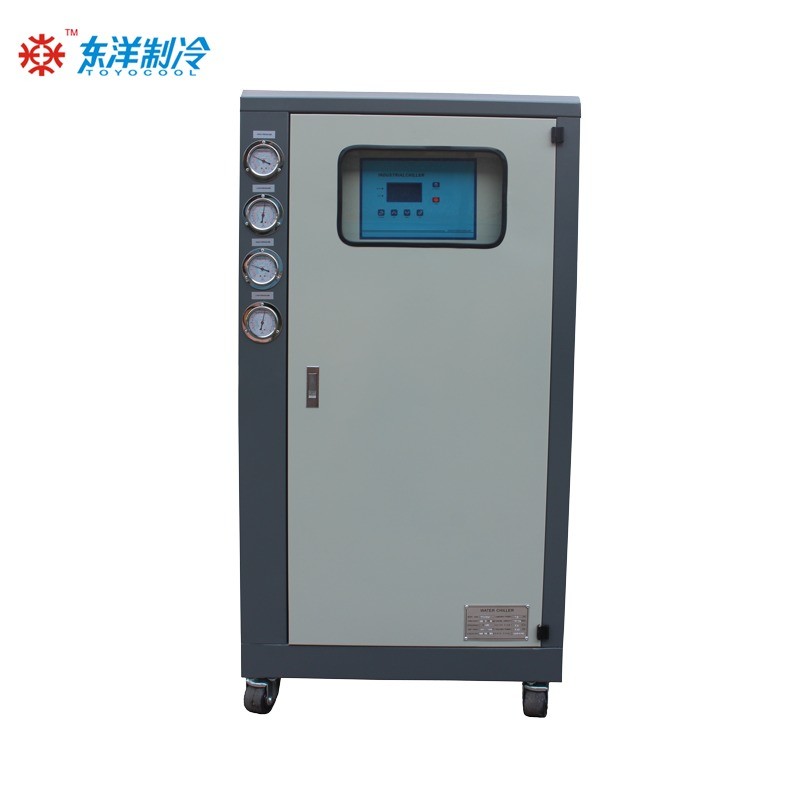

A vacuum plating machine chiller is a machine used to cool equipment in the vacuum plating process. In the vacuum electroplating process, metals or other materials are evaporated and deposited onto a substrate to form a thin film. This process needs to be carried out under certain temperature and pressure conditions, and the cooling system is mainly used to control the temperature inside the equipment and ensure that the plating process is carried out properly.
Vacuum plating machine chillers usually consist of a cold water circulation system, compressor, condenser, evaporator, diffuser and other components. The cold water circulation system plays a role in lowering the temperature by circulating the cold water through the hot areas inside the equipment. The compressor compresses the refrigerant, transforming the high temperature, high pressure gas into a low temperature, low pressure gas. The condenser cools the gas, causing it to condense into a liquid state, thus releasing heat. The evaporator converts the condensed liquid into gas to achieve the purpose of cold water circulation. The diffuser is mainly used to regulate the pressure inside the system to ensure the normal operation of the equipment.
Performance Features
- Efficient and precise temperature control:
Provide 5-35 ℃ water, precise adjustment of temperature ± 1 ℃; the use of high-efficiency shell and tube heat exchanger, high energy efficiency ratio; microcomputer precision intelligent control, with RS485 remote communication function.
- High-quality core parts:
Japan Panasonic or the United States Copeland compressor, low noise, high efficiency; with Toyo high-efficiency shell-and-tube condenser, coil or shell-and-tube evaporator, copper tube using internal and external threaded tube enhancement, enhanced heat transfer capacity, good cooling effect, evaporator cylinder body with insulation board insulation, no condensation, less loss of cold, smooth surface of the copper tube, easy to clean and maintain; the use of the United States ALCO, Denmark, Danish Danforth, and other international first-class brand accessories, excellent performance, safety and environmental protection; the microcomputer precision intelligent control with RS485 remote communication. Outstanding performance, safety and environmental protection; reliable operation and long service life of the unit; the shell adopts quick dismantling form, which is convenient for use and maintenance.
- Comprehensive safety protection:
With compressor delay start protector, compressor frequent start protector, compressor overheating protector, overload protector, high and low voltage protector, anti-freezing switch, fusible plugs, etc., to ensure the normal operation of the unit, with a lack of phase/reverse-phase protection, lack of water/insufficient flow protection, low temperature/anti-freezing protection and other functions.
- Widely used in the industry:
Applied in various industries such as injection moulding, plastic absorbing, electroplating, food, medicine, new materials and so on.
Water-cooled chiller parameter table
Note:
1. High-pressure pumps can be ordered according to customers' special requirements.
2. The above specifications are designed according to three-phase 380V/50HZ power supply.
3. If you need low-temperature type machine or acid and alkali resistant type, please specify before ordering.
4. The above products are designed according to standard, cooling water inlet 32℃, outlet 37℃, chilled water inlet temperature 12℃, outlet 5-7℃.
5. Product specifications are subject to change without notice.
Vacuum plating machine chiller has an important role in vacuum plating process. Firstly, the chiller can effectively control the temperature inside the equipment to avoid negative impact on the equipment and materials due to high temperature. Secondly, the chiller can provide stable cooling effect to ensure the stability and quality of the plating process. At the same time, through the use of chiller, it can also improve the plating efficiency, reduce energy consumption and production costs.
In addition to its application in vacuum electroplating process, vacuum plating machine chiller is also widely used in other fields, such as chemical, electronic, food, pharmaceutical and other industries. In these industries, chiller is also a common cooling equipment used to control the temperature in the equipment or process to ensure the normal operation of the production process.
