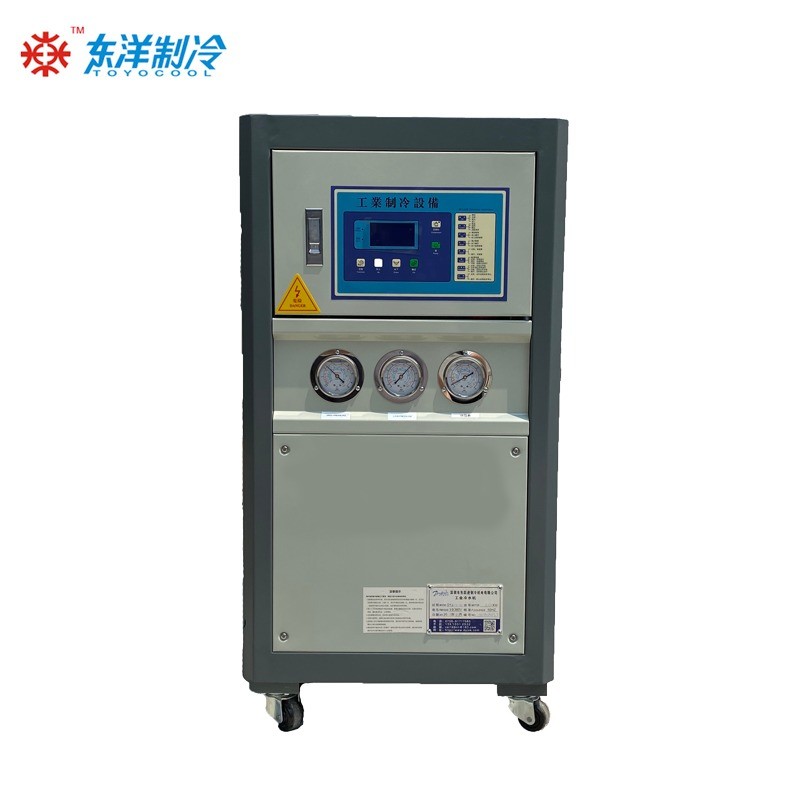

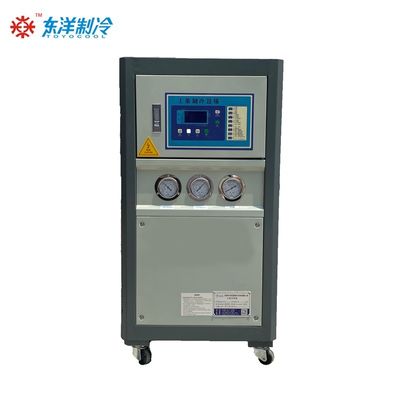

Non-standard 3HP water-cooled chiller is a new type of water-cooled equipment in the current market, which mainly consists of circulating pump, evaporator, condenser, control system and other components to achieve the purpose of cooling by circulating water. Compared with the traditional air-cooled chiller, water-cooled chiller has higher efficiency and more stable performance, which can meet the demand for cold water in different industries.
The 3HP water-cooled chiller has a large cooling capacity and is suitable for the cooling needs of small and medium-sized industrial production sites. Its advanced compressor technology and efficient cooling system ensure a balance between cooling effect and energy consumption. At the same time, its non-standard customised design also makes the equipment more suitable for customer needs and site layout, which can effectively improve work efficiency and save space.
Performance Features
- Efficient and precise temperature control:
Provide 5-35 ℃ water, precise adjustment of temperature ± 1 ℃; the use of high-efficiency shell and tube heat exchanger, high energy efficiency ratio; microcomputer precision intelligent control, with RS485 remote communication function.
- High-quality core parts:
Japan Panasonic or the United States Copeland compressor, low noise, high efficiency; with Toyo high-efficiency shell-and-tube condenser, coil or shell-and-tube evaporator, copper tube using internal and external threaded tube enhancement, enhanced heat transfer capacity, good cooling effect, evaporator cylinder body with insulation board insulation, no condensation, less loss of cold, smooth surface of the copper tube, easy to clean and maintain; the use of the United States ALCO, Denmark, Danish Danforth, and other international first-class brand accessories, excellent performance, safety and environmental protection; the microcomputer precision intelligent control with RS485 remote communication. Outstanding performance, safety and environmental protection; reliable operation and long service life of the unit; the shell adopts quick dismantling form, which is convenient for use and maintenance.
- Comprehensive safety protection:
With compressor delay start protector, compressor frequent start protector, compressor overheating protector, overload protector, high and low voltage protector, anti-freezing switch, fusible plugs, etc., to ensure the normal operation of the unit, with a lack of phase/reverse-phase protection, lack of water/insufficient flow protection, low temperature/anti-freezing protection and other functions.
- Widely used in the industry:
Applied in various industries such as injection moulding, plastic absorbing, electroplating, food, medicine, new materials and so on.
Water-cooled chiller parameter table
Note:
1. High-pressure pumps can be ordered according to customers' special requirements.
2. The above specifications are designed according to three-phase 380V/50HZ power supply.
3. If you need low-temperature type machine or acid and alkali resistant type, please specify before ordering.
4. The above products are designed according to standard, cooling water inlet 32℃, outlet 37℃, chilled water inlet temperature 12℃, outlet 5-7℃.
5. Product specifications are subject to change without notice.
