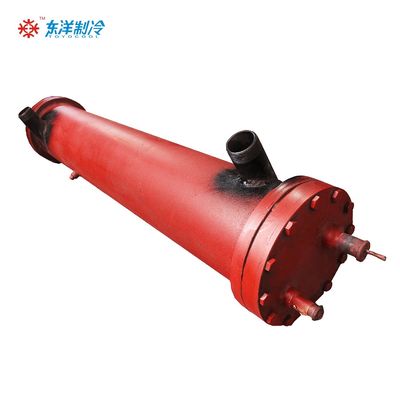

Customized Shell And Tube Type Evaporator Single Circuit Evaporator Shell Compact

Single-loop shell-and-tube evaporator is a commonly used heat transfer equipment, which is widely used in the production process of chemical industry, foodstuff, medicine and other industries. It makes the liquid to be evaporated by placing it inside the tube and using the external heating source to make it evaporate. Through the heat and mass transfer between the wall of the tube and the external medium, the heat in the liquid will be transferred to the external medium to make it evaporate.

Single-loop shell-and-tube evaporator is a very efficient evaporation equipment, and its main advantages include high heat transfer efficiency, fast evaporation speed, small footprint, convenient operation and so on. It usually consists of shell, tube bundle, heat transfer medium inlet and outlet, evaporation medium inlet and outlet and other parts, in which the shell is usually filled with heat transfer medium and the tube bundle is filled with liquid to be evaporated.

Performance Features

Shell and tube evaporator is a kind of heat exchanger with compact structure, convenient installation and high heat exchange performance, with the wall of copper tube bundle enclosed in the shell as the heat transfer surface of the inter-wall heat exchanger, which has the features of low cost and wide circulation cross-section. It can be customised as single-loop, double-loop, triple-loop and quadruple-loop system according to the usage requirements, and it is the most widely used heat exchanger.

Heat exchange range: 7112Kcal/h-1330560Kcal/h.

Precision CNC machining and manufacturing, tested by the National Testing Centre, the technical indexes have reached the international advanced level. Side cover design, easy to clean and maintain. Adopting high quality copper tube with inner thread, high strength sealing structure, good sealing and increased heat exchange capacity.HCFC, HFC or other types of refrigerant can be used together.

Shell and tube evaporator parameter table (single circuit)

Note:

1. The above specifications are for cold water inlet temperature 12℃ and outlet temperature 7℃.

2. The above specifications are subject to change without prior notice.

3. Special specifications can be customised upon request.
