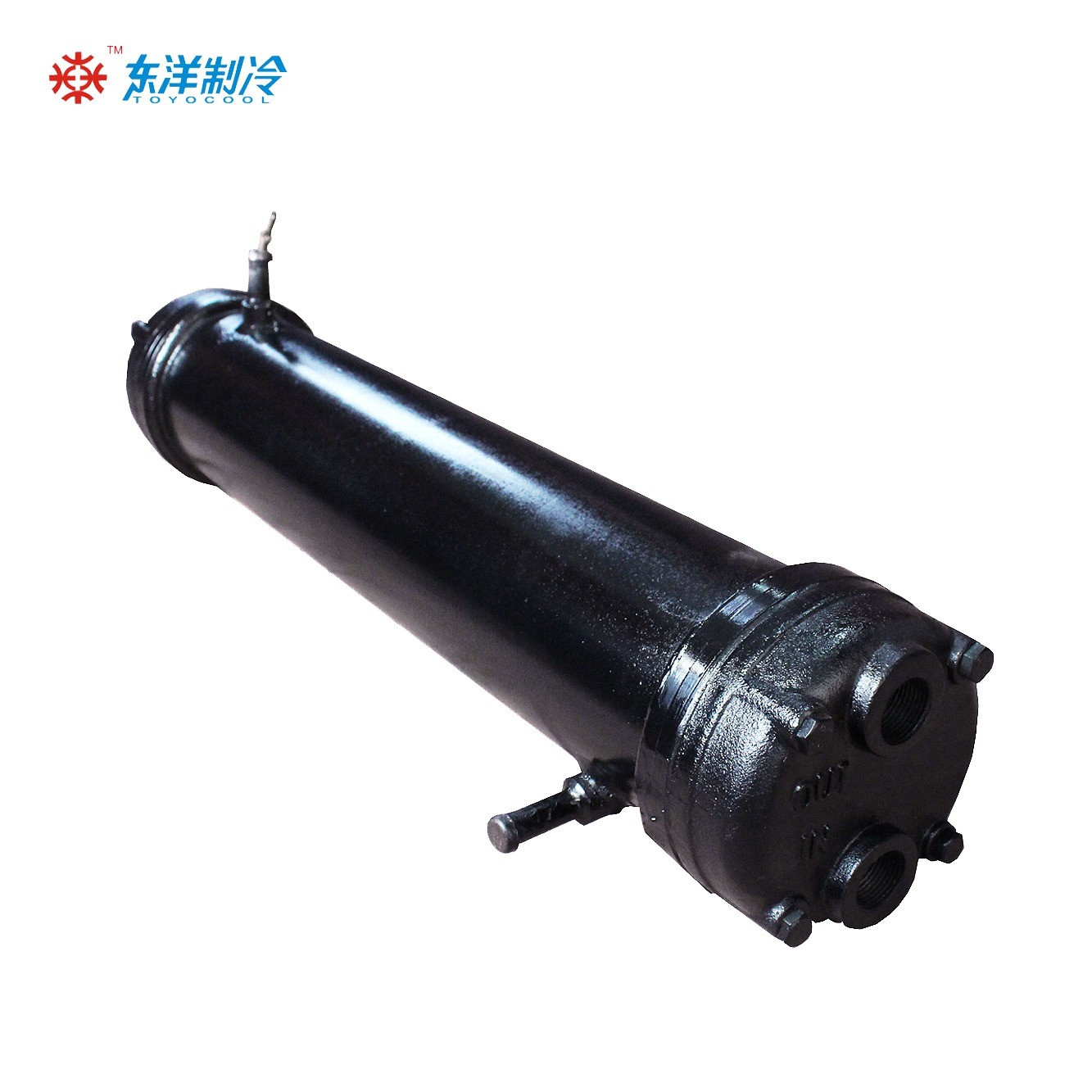

11340Kcal/h - 1134000Kcal/h Shell And Tube Condenser Compact Shell Tube Heat Exchanger

Performance Features

Shell and tube condenser is a kind of heat exchanger with compact structure, easy installation and high heat transfer performance, with the wall of copper tube bundle closed in the shell as the heat transfer surface of the inter-wall heat exchanger, which has the features of low cost, wider circulation cross-section and easy to clean the scale. Can

In the high temperature, high pressure use, can be customised according to the use of demand for single-loop, double-loop, three-loop system, is the most widely used heat transfer equipment.

Heat exchange range: 11340Kcal/h-1134000Kcal/h.

Precision CNC machining and manufacturing, tested by the National Testing Centre, the technical indicators have reached the international advanced level.

Adopting high-quality external threaded copper tube, high-strength sealing structure, strong heat exchange capacity. Side cover design, easy to clean and maintain.HCFC, HFC or other types of refrigerant can be used.

Shell and tube condenser parameter table (single circuit)

Shell and tube condenser parameter table (double circuit)

Shell and tube condenser parameter table (three/four circuits)

Note:

1. The above specifications are cold water inlet temperature 30℃, water temperature 35℃.

2. The above specifications are subject to change without notice.

3. Special specifications can be customised according to requirements.
