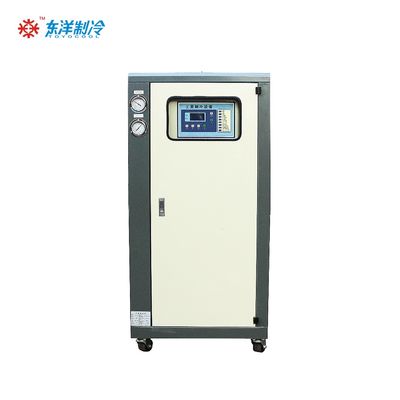

The air-cooled chiller adopts an air-cooled cooling system, which eliminates the need for additional installation of water pumps and cooling towers, and saves the piping connection and maintenance costs of traditional water-cooled systems. At the same time, through optimised design and high efficiency compressor, this product can significantly improve the cooling efficiency, reduce energy consumption and reduce the cost of use.
In the refrigeration industry is divided into two kinds of air-cooled chiller and water-cooled chiller, according to the compressor is divided into screw chiller and scroll chiller, in the temperature control is divided into low-temperature industrial chiller and room temperature chiller, the room temperature unit temperature is generally controlled in the range of 0 degrees -35 degrees. The temperature control of low-temperature units is generally in the range of 0 degrees to -100 degrees.
Performance Features
Efficient and precise temperature control:
Can provide 5-35 ℃ water, precise adjustment of temperature ± 1 ℃, finned condenser using plus large design, increase the heat transfer area, reduce the heat transfer temperature difference, can be applied to 45 ℃ high temperature conditions under refrigeration; microcomputer precision intelligent control, with RS485 remote communication function.
High-quality core parts:
Japan Panasonic or the United States Copeland compressor, low noise, high efficiency; with finned condenser, coil or shell and tube evaporator, the use of the United States ALCO, Danish Danfoss and other international first-class brand accessories, excellent performance, safety and environmental protection; reliable operation of the unit, long service life. All stainless steel thick water tank evaporator, built-in automatic water replenishment device, cleaning and maintenance is convenient and quick; shell using quick disassembly form, easy to use and maintenance.
Comprehensive safety protection:
With compressor delay start protector, compressor frequent start protector, compressor overheating protector, overload protector, high and low voltage protector, antifreeze switch, fusible plug, etc., to ensure the normal operation of the unit, with a lack of phase/reverse-phase protection, lack of water/insufficient flow protection, low temperature/anti-freezing protection and other functions.
Widely used in the industry:
Unit integrated design, beautiful appearance, easy to install and maintain, used in injection moulding, plastic absorbing, electroplating, food, medicine, new materials and other industries.
Air-cooled chiller parameter table
Note:
1. High-pressure pumps can be ordered according to customers' special requirements.
2. The above specifications are designed according to three-phase 380V/50HZ power supply.
3. If you need low-temperature type machine or acid and alkali resistant type, please specify before ordering.
4. The above products are designed according to the standard, ambient temperature ≤ 45 ℃, chilled water inlet temperature 12 ℃, outlet 5-7 ℃.
5. Product specifications are subject to change without notice.
Depending on the configuration and parameters of the chiller required by each industry, the chiller technology is also separate. In the electroplating industry, the need for frequent use of water chillers. And because the electroplating industry has many acidic and alkaline solutions need to be cooled, and corrosive is very large, so it needs to be specially made, and the chiller pumps need to choose stainless steel pumps, and the use of titanium tubular evaporator or stainless steel evaporator, components must be corrosion-resistant, otherwise electroplating the use of potion will be corroded chiller components, affecting the service life of the chiller unit.
